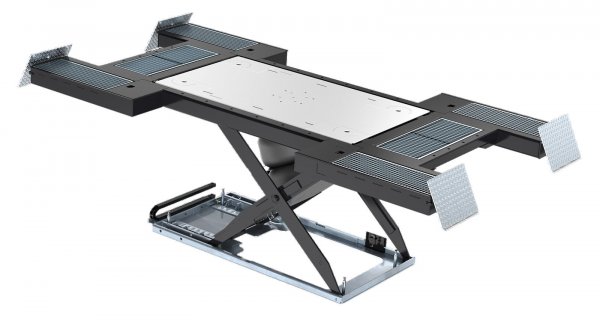

Consul Compact Scissor lift PneuLift® 0.35 F BE

Consul Compact Scissor lift PneuLift® 0.35 F BE

SKU: 730960
Category: Pneumatic Scissor Lifts

Pneumatic lift for professional usage in Body & Paint Shops.

Design features:

Pneumatic drive – no electricity necessary
Control via hand-operated lever valve
Sturdy design via use of high quality components
Platform element grated for pick-up on the wheels
Bearings and bolts serially with bushings
Roll-back protection front and back
Catching mechanism via self-securing locking system
Automatic unlocking of catching mechanism
Usage as inground version (BE) with CE-stop
Also available as on-floor version (BA)
Painted RAL 9005 and 7035

Rated load capacity:	3.500 kg
Lifting height:	ca. 1.160 mm
Width of runways:	ca. 1.980 mm
Length of runways:	ca. 3.700 mm
Set-up length with drive-on ramps:	ca. 4.384 mm
Air supply max.:	8 bar
