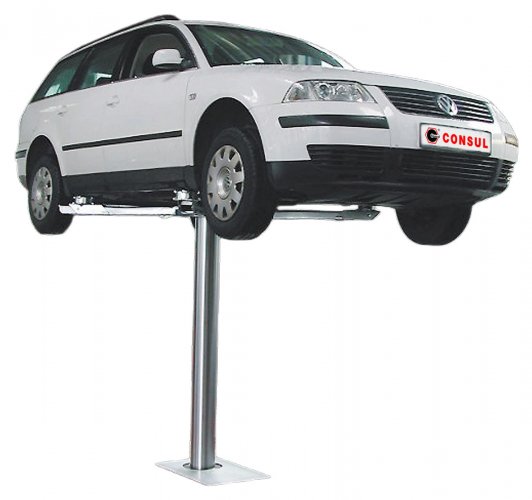

Consul 1-ram inground lift 1.40 MDA

'

1 ram inground lift specifially designed for operation in wash halls with 1.800 mm lifting height. Due to its slim design even applicable in old cylinder liners. For lifting of vehicles with an overall weight of 4.000 kg, depending on the applied lifting chassis. Lift has to be combined with chassis.

Design features:

  • Hard chrome plated ram
  • Electro hydraulic drive in seperate oil tank
  • Control in seperate housing, suited for wet rooms (Protection class IP65)
  • Rotation prevention inside
  • 1 set of mounting rails with fixing material
  • Oil demand approx. 80 liters (1.800 mm stroke)
  • GS-approved, DIN EN 1493, CE-approved
'
Consul Grid covering 2 x 4 m with subconstruction

Consul Grid covering 2 x 4 m with subconstruction

Grid covering 2 x 4 m with subconstruction.... Mehr Lesen

Consul Installation cassette (1.800 mm stroke)

Consul Installation cassette (1.800 mm stroke)

''... Mehr Lesen

Consul Hydraulic oil in 5L-container

Consul Hydraulic oil in 5L-container

'5 liter container hydraulic oil (HLP 22) suitable for all Consul lifts with hydraulic drive. Necessary amount to be ordered depends on lift type. '... Mehr Lesen

Consul Leakage oil display

Consul Leakage oil display

Only in association with installation cassette Art. No. 28707.8.... Mehr Lesen

Consul Control unit according to OEM industry standard

Consul Control unit according to OEM industry standard

'Control unit according to OEM industry standard - please state OEM upon order'... Mehr Lesen
