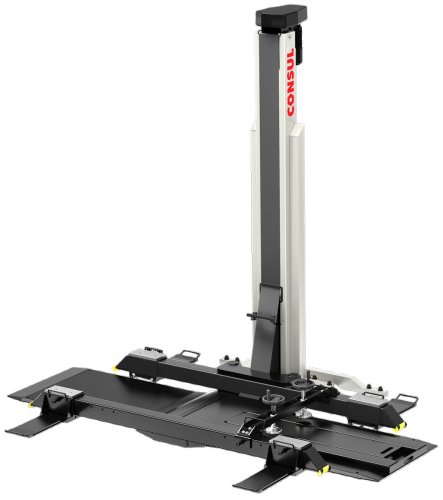

Consul 1-post lift Premium EL® 1.17 LV

Special reception chassis for lifting carriages with a total weight of up to 1.700 kg.

Design features:

  • Special hot-rolled section column, no sheet metal
  • Carriage guided by 6 rollers
  • Bronze load and safety nut
  • Collapsed load nut raise mechanical lock-down feature
  • Acoustic foot protection
  • Oil dispenser for supporting lubrication
  • Softline push button control with protection against maloperation
  • Complete covering for post interior
  • Separate main switch (can be locked as required by CE)
  • Special reception chassis for lifting carriages
  • Drive via V-belt motor with thermal protection
  • Protection class IP 54, Socket 230 V, GS-approved, DIN EN 1493, CE-approved
Consul Fixing material

Consul Fixing material

Fixing material for type 1.15 & 1.25 consisting of: 6 Reaction anchors M16 and threaded rods.... Mehr Lesen

Consul Base plate fixing bars

Consul Base plate fixing bars

Base plate fixing bars for type 1.15 BRM & 1.25, for ground conditions with a thickness of concrete of 150-210 mm... Mehr Lesen

Consul Base frame, self supporting

Consul Base frame, self supporting

Self supporting base frame. Drive over height + 50 mm.... Mehr Lesen

Consul Special painting (RAL colour code is required)

Consul Special painting (RAL colour code is required)

Special painting (RAL colour code is required)... Mehr Lesen

Consul Spindle oil in 1L-container

Consul Spindle oil in 1L-container

Special spindle oil for lubrication of spindle / nut systems for lifts with spindle drive. Delivery in 1 liter bottles.... Mehr Lesen
