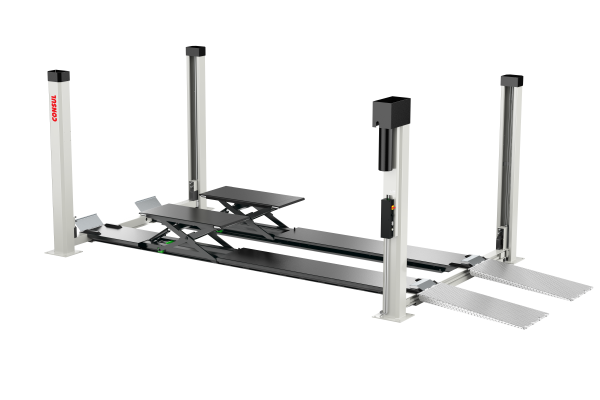

Consul 4-post lift 4.65 SN

SKU: 730796
Category: 4-Post-Lifts

4-post lift suitable for lifting and wheel alignment of passenger cars and commercial vehicles with a total weight up to 6.500 kg, even for larger vehicles with long wheel base. With integrated wheel free scissor (3.500 kg).

Design features:

Low noise hydraulic under oil drive
Electro-hydraulic control
Operation in drive-on direction back left
Separated main switch (can be locked as required by CE)
Acoustic foot protection
Hydraulic traction cylinder
Slack cable, cable failure safety feature and roll back protection
Platform with 1.500 mm long drive-on ramps for sporty vehicles
One platform fully adjustable, with locking mechanism (optionally roller-guided)
Integrated rail for jacking beam
Integrated wheel free scissor with extendable supports
Wheel free scissor with Master/Slave hydraulic system
Inclusive 40 mm elastomer pick ups
Central control for pneumatic locking device (8 bar)
Locking bars for overall lifting height with locking device each 100 mm
Protection class IP 54 GS-approved, DIN EN 1493, CE-approved

When ordering with wheel alignment set:

Integrated full size sliding plates
System for turn tables up to 50 mm height, with serial turn table cover

technical data
PDF (2)

Rated load capacity:	6.500 kg
Lifting height:	ca. 1.980 mm
Lifting time loaded:	ca. 55 s
Set-up width:	3.505 mm
Drive-on-height:	ca. 185 / ca. 235 (AM) mm
Clear span between:	ca. 2.945 mm
Power supply:	400 V \| 50 Hz
Driving power:	3,0 kW
Fuse protection:	20 A slow-blow
Oil quantity:	9 l
Width of runways:	630 mm
Length of runways:	5.500 mm
Space of runways:	ca. 690 - 1.140 mm
Overall height:	ca. 2.610 mm
Set-up length with drive-on ramps:	7.120 mm
Drive-over height:	ca. 50 (SN) mm
Rated load capacity of wheel free lift:	3.500 kg
Lifting height of wheel free lift:	ca. 450 mm
Length of wheel free lift:	1.400 - 1.900 mm
Lifting time - Wheel free lift:	ca. 15 s
