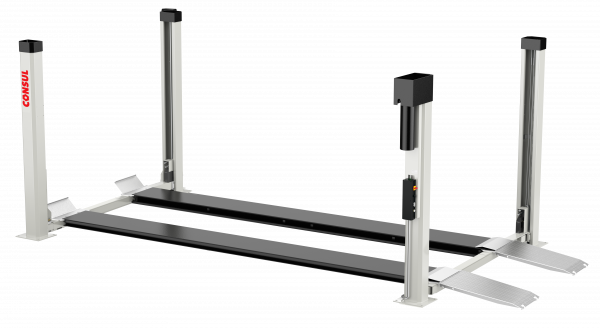

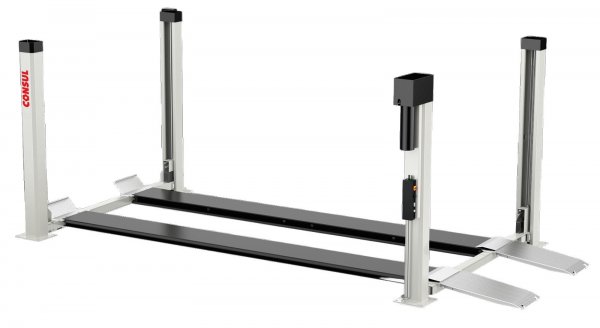

Consul 4-post lift 4.120

4 post lift suitable for vehicles up to 12.000 kg. Platforms 700 x 7.000 mm

Design features:

  • Low noise hydraulic under oil drive
  • Electro-hydraulic control
  • Separated main switch (can be locked as required by CE)
  • Acoustic foot protection
  • Hydraulic traction cylinder
  • Slack cable, cable failure safety feature and roll back protection
  • Platform with 1.000 mm long drive-on ramps for sporty vehicles
  • One platform fully adjustable, with locking mechanism
  • Integrated rail for jacking beam
  • Central control for pneumatic locking device (8 bar)
  • Locking bars for overall lifting height with locking device each 100 mm
  • Protection class IP 54 GS-approved, DIN EN 1493, CE-approved
