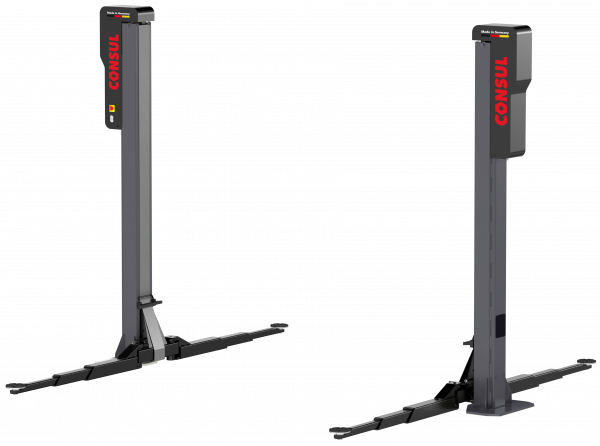

Consul 2-post lift Premium EL® 2.35 MB

Professional, base frame free 2-post lift series according to Mercedez-Benz guidelines suitable for lifting of small vehicles (e.g. Smart Fortwo BR453) and medium transporters with long wheel base (e.g VW T6).

Design features:

  • Special rolled section column
  • Installation rectangular to drive-on direction
  • Carriage guided by 6 rollers
  • Bronze load nut / cast alloy safety nut
  • Oil dispenser for supporting lubrication
  • Broken nut raise lock-down features
  • Acoustic foot protection
  • Softline push button control with computer guided leveling system
  • Lockable main switch directly on the post
  • Cushioning door stop, adjustable pick up plate (approx. 30 mm)
  • Complete covering of post interior
  • Automatic arm locking device, locking at 300 mm
  • Optional: self-supporting base frame; 2nd control unit
  • Protection class IP 54, GS approved, DIN EN 1493, CE approved
  • Lift in RAL 7015
  • Inclusive document holder
  • Inclusive tool trays 2 pcs.
  • Inclusive special adapter prisma pick up for GW with + without footboard
  • Inclusive 50 mm spacers
  • Inclusive installation material

* Lifting heights only reachable with optional accessories

** Lowest swivel-in heights reachable with optimal floor conditions

Consul 2nd control box surcharge for ex works installation

Consul 2nd control box surcharge for ex works installation

Surcharge for ex works installation of 2nd control box... Mehr Lesen

Consul 2nd control box for slave column

Consul 2nd control box for slave column

2nd control box for slave column for Consul 2.35 - 2.45 Premium.... Mehr Lesen

Consul Drive-on ramps

Consul Drive-on ramps

Drive-on ramps, 1 set = 4 pcs.... Mehr Lesen

Consul Pick up supports with turn tables

Consul Pick up supports with turn tables

4 pieces, Ø 100 mm instead of Ø 130 mm... Mehr Lesen

Consul Fixing material up to 3.500 kg

Consul Fixing material up to 3.500 kg

Fixing material for all Consul 2-post lift with a capacity up to 3.500 kg, consisting of 12 reaction anchors M12, threaded rods and washers. Order 2x for 2x 2.30 EL!... Mehr Lesen

Consul ConSoft diagnostic software

Consul ConSoft diagnostic software

Maintenance and diagnostic software for 2-post lifts.... Mehr Lesen

Consul Ceiling limit switch with light barrier

Consul Ceiling limit switch with light barrier

Ceiling limit switch with light barrier... Mehr Lesen

Consul Ceiling limit switch manual

Consul Ceiling limit switch manual

Ceiling limit switch manual... Mehr Lesen

Consul Spacers 100 mm

Consul Spacers 100 mm

'Spacers 100 mm for Consul swivel-arm lifts starting up to 4 to capacity (1 Set = 4 pcs.)'... Mehr Lesen

Consul Spacers 12 mm

Consul Spacers 12 mm

'Spacers 12 mm for Consul swivel-arm lifts starting up to 4 to capacity (1 Set = 4 pcs.)'... Mehr Lesen

Consul Spacers 150 mm

Consul Spacers 150 mm

'Spacers 150 mm for Consul swivel-arm lifts starting up to 4 to capacity (1 Set = 4 pcs.)'... Mehr Lesen

Consul Spacers 200 mm

Consul Spacers 200 mm

'Spacers 200 mm for Consul swivel-arm lifts starting up to 4 to capacity (1 Set = 4 pcs.)'... Mehr Lesen

Consul Spacers 35 mm

Consul Spacers 35 mm

'Spacers 35 mm for Consul swivel-arm lifts starting up to 4 to capacity (1 Set = 4 pcs.)'... Mehr Lesen

Consul Spacers 50 mm

Consul Spacers 50 mm

'Spacers 50 mm for Consul swivel-arm lifts starting up to 4 to capacity (1 Set = 4 pcs.)'... Mehr Lesen

Consul Spacer holders

Consul Spacer holders

Spacer holders, 1 Set = 4 pcs.... Mehr Lesen

Consul Base plate fixing bars up to 4,0 to

Consul Base plate fixing bars up to 4,0 to

2 pcs. Base plate fixing bars for all Consul 2-post lifts with a capacity up to 4.000 kg. For concrete thickness 150 - 210 mm. Please order 2x for caravan lifts!... Mehr Lesen

Consul Base frame, self supporting, symmetric

Consul Base frame, self supporting, symmetric

Self supporting base frame, symmetric. For concrete thickness 100-150 mm.... Mehr Lesen

Consul Manual override kit

Consul Manual override kit

Manual override kit for 2-post lifts up to 4,5 to. capacity... Mehr Lesen

Consul Cable bridge

Consul Cable bridge

Cable bridge for all 2-post and caravan (order 3x) lifts... Mehr Lesen

Consul Cable bridge extension

Consul Cable bridge extension

Cable bridge extension. Installation width > 3.600 mm. (order 3x for caravan lifts)... Mehr Lesen

Consul Cable inground - SURCHARGE

Consul Cable inground - SURCHARGE

Cable inground - SURCHARGEincl. Extended cables, cable channel on posts & drilled base plates... Mehr Lesen

Consul OEM Upgrade

Consul OEM Upgrade

OEM Upgrade - Drive with 3 kW brake motors incl. brass gears for potentiometer... Mehr Lesen

Consul Tyre Center Comfort Package

Consul Tyre Center Comfort Package

Tyre Center Comfort Package for Consul 2-post lifts.... Mehr Lesen

Consul Special painting (RAL colour code is required)

Consul Special painting (RAL colour code is required)

Special painting (RAL colour code is required)... Mehr Lesen

Consul Special pick-up Ford Transit up to 4 t

Consul Special pick-up Ford Transit up to 4 t

Special pick-up Ford Transit for all Consul 2-post lifts with a capacity up to 4.000 kg.... Mehr Lesen

Consul Special pick-up for Tesla vehicles

Consul Special pick-up for Tesla vehicles

Special pick-up for Tesla vehicles also usable for third party jacking pad systems up to 130 mm Ø (incl. Third party components)... Mehr Lesen

Consul Special pick-up MB off-road up to 4 t

Consul Special pick-up MB off-road up to 4 t

Special pick-up MB off-road for all Consul 2-post lifts with a capacity up to 4.000 kg.... Mehr Lesen

Consul Special adapter with pick-up pin up to 4 to

Consul Special adapter with pick-up pin up to 4 to

Special adapter with pin for direct insertion into the arm or spacer for lifts with a total capacity of up to 4 to. 1 set includes: 2 pcs. adapters with pick-up pin.

Suited for interlocking pick-up of transporters e.g. MB Sprinter

... Mehr Lesen
Consul Special pick-up Sprinter/Crafter up to 4 t

Consul Special pick-up Sprinter/Crafter up to 4 t

Special pick-up Sprinter/Crafter for all Consul 2-post lifts with a capacity up to 4.000 kg.... Mehr Lesen

Consul Special pick-up VW Amarok up to 4 t

Consul Special pick-up VW Amarok up to 4 t

Special pick-up VW Amarok for all Consul 2-post lifts with a capacity up to 4.000 kg.... Mehr Lesen

Consul Special pick-up for VW ID.4

Consul Special pick-up for VW ID.4

Special pick-up for VW ID.4... Mehr Lesen

Consul Spindle oil in 1L-container

Consul Spindle oil in 1L-container

Special spindle oil for lubrication of spindle / nut systems for lifts with spindle drive. Delivery in 1 liter bottles.... Mehr Lesen

Consul Control unit according to OEM industry standard

Consul Control unit according to OEM industry standard

Control unit according to OEM industry standard - please state OEM upon order... Mehr Lesen

Consul Tool trays up to 4 t

Consul Tool trays up to 4 t

Tool trays for Consul 2-post lifts and caravan lifts up to 4 to.... Mehr Lesen

Consul Lashing straps

Consul Lashing straps

Lashing straps to secure for aggregate removal for 2-post lifts. 1 Set = 2 pcs.... Mehr Lesen

Consul Pick up support up to 4 t

Consul Pick up support up to 4 t

'Pick up support for off-road vehicles. 1 Set = 2 pcs. For lifts with swivel arm pick-up adapters up to 4.000 kg and caravan lifts (incl. 2x 2.45 EL).'... Mehr Lesen
