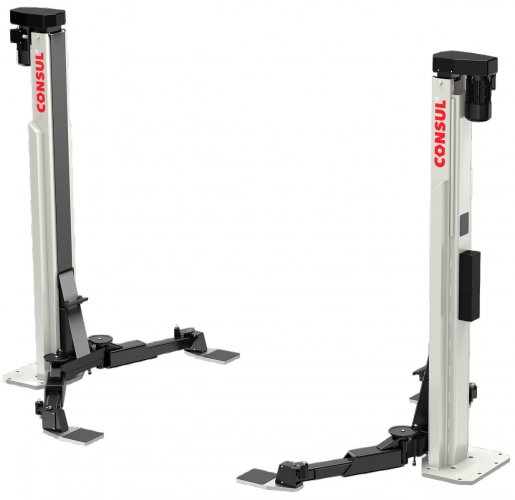

Consul 2-post forklift lift Premium EL® 2.60 LV

SKU: 578526
Category: Logistic Vehicles

Robust and reliable 2-post lift suitable for forklifts. Capacity 6.000 kg.

Design features:

Special rolled section column
Carriage guided by 6 rollers
Bronze load and safety nuts
Collapsed load nut raise mechanical lock-down feature
Acoustic foot protection
Oil dispenser for supporting lubrication
Softline push button control with protection against maloperation
Electronic synchronization
Separate main switch (can be locked as required by CE)
Special telescopic swivel arms, 3-part, double extendable
Drive via 2 V-belt motors with thermal protection and electr. brake
Protection class IP 54, Socket 230 V, GS-approved, DIN EN 1493, CE-approved

* Lowest swivel-in heights reachable with optimal floor conditions
** Cable lengths designed for a max. of 4,000 mm.

technical data
PDF (1)

Rated load capacity:	6.000 kg
Lifting height:	approx. 1.750 mm
Lifting-/ lowering time:	ca. 45 s
Bottom clearance:	approx. 30* mm
Arm extension range:	approx. 950 - 1.250 (2-pcs.) mm
Set-up width:	individual**
Set-up height:	approx. 2.900 mm
Clear span between:	individual**
Drive-through width:	individual**
Power supply:	400 V \| 50 Hz
Driving power:	2 x 5,0 kW
Fuse protection:	25 A slow-blow
