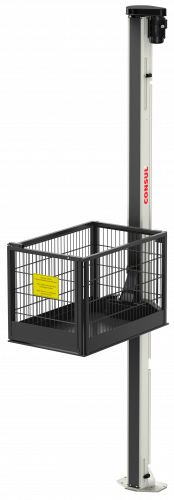

Consul 1-post tyre lift 1.05 KTH 4.000

'

Stock lift for fixed installation. Basket with 4-sides fence (optional openings) with safety switch. Locking mechanism for safe operation.

Design features:

  • Special rolled section column, carriage guided by 6 rollers
  • Bronze load nut / cast alloy safety nut
  • Oil dispenser for supporting lubrication
  • Anti-raise lock-down safety device
  • Push button control
  • Lockable main switch (as required by CE)
  • Accoustic foot protection
  • Belt drive motor with thermal protection
  • Complete covering of post interior
  • Additional spindle guide depending on lifting height
  • Lifting basket with various opening versions
  • One protection fence each floor
  • Other fastening elements are to be installed / adapted by the customer
  • Further safety mechanisms for safe connection on demand
  • Additional fixing material or connection to site in upper floor (required)
  • Not suited for continuous operation (ED100%)
  • Protection class IP 54, GS-approved, DIN EN 1493, CE-approved
'
Consul External control unit

Consul External control unit

External control unit for 1.05 KTH. Please specify distance between column and site of installation.... Mehr Lesen

Consul Fixing material incl. 1L spindle oil

Consul Fixing material incl. 1L spindle oil

Fixing material for type 1.05 & 1.06 consisting of: 6 Reaction anchors M12 and threaded rods.... Mehr Lesen

Consul Guide bar

Consul Guide bar

Guide bar for 1.05 KTH. Recommended for use with special design wider baskets for stability against shaking.... Mehr Lesen

Consul Exit for 1.05 KTH Exit A

Consul Exit for 1.05 KTH Exit A

For each level... Mehr Lesen

Consul Exit for 1.05 KTH Exit B

Consul Exit for 1.05 KTH Exit B

For each level... Mehr Lesen

Consul Exit for 1.05 KTH Exit C

Consul Exit for 1.05 KTH Exit C

For each level... Mehr Lesen

Consul Base plate fixing bars

Consul Base plate fixing bars

Base plate fixing bars for type 1.05 KTH & 1.06 RM, for ground conditions with a thickness of concrete of 150-210 mm... Mehr Lesen

Consul Transport basket for 1.05 KTH

Consul Transport basket for 1.05 KTH

Transport basket (Outside dimensions 1.700 x 1.200 x 835 mm)Exit to 2 sides, opening A & BSpecial capacity on request... Mehr Lesen

Consul Transport basket for 1.05 KTH

Consul Transport basket for 1.05 KTH

Transport basket (Outside dimensions 1.700 x 1.200 x 835 mm)Exit to 2 sides, opening A & CSpecial capacity on request... Mehr Lesen

Consul Transport basket for 1.05 KTH

Consul Transport basket for 1.05 KTH

Transport basket (Outside dimensions 1.700 x 1.200 x 835 mm)Exit to 2 sides, opening B & CSpecial capacity on request... Mehr Lesen

Consul Transport basket for 1.05 KTH

Consul Transport basket for 1.05 KTH

Transport basket (Outside dimensions 1.700 x 1.200 x 835 mm)Exit to 3 sides, opening A, B & CSpecial capacity on request... Mehr Lesen

Consul Transport basket for 1.05 KTH

Consul Transport basket for 1.05 KTH

Transport basket (Outside dimensions 1.700 x 1.200 x 835 mm)Exit to 1 side, opening ASpecial capacity on request... Mehr Lesen

Consul Transport basket for 1.05 KTH

Consul Transport basket for 1.05 KTH

Transport basket (Outside dimensions 1.700 x 1.200 x 835 mm)Exit to 1 side, opening BSpecial capacity on request... Mehr Lesen

Consul Transport basket for 1.05 KTH

Consul Transport basket for 1.05 KTH

Transport basket (Outside dimensions 1.700 x 1.200 x 835 mm)Exit to 1 side, opening CSpecial capacity on request... Mehr Lesen

Consul Special painting (RAL colour code is required)

Consul Special painting (RAL colour code is required)

Special painting (RAL colour code is required)... Mehr Lesen

Consul Spindle oil in 1L-container

Consul Spindle oil in 1L-container

Special spindle oil for lubrication of spindle / nut systems for lifts with spindle drive. Delivery in 1 liter bottles.... Mehr Lesen
